LIVE BLOOD MICROSCOPE
PHASE CONTRAST MICROSCOPY
DARKFIELD – BRIGHTFIELD ILLUMINATION
BRIGHT 350W FIBER OPTIC LIGHT
VIDEO CCD CAMERA AND USB CAMERA


Discounted from actual price below.
Price: $ 3,799.98
Model: tv027e000n
Shipping/Handling/Insurance: $ 94.98


USB computer connected 3Mpixel camera is included. Laptop is not included.


Product Overview //

  • Ultra-Darkfield and Phase Contrast Live Blood Medical Analysis Microscope!
  • Achieve Ultra-Darkfield Illumination with the special Super High Intensity 350W Fiber Optic Illumination Source!
  • Get the Best of All Three Major Microscopy Techniques: Ultra-Darkfield, Phase Contrast, Brightfield.
  • Excellent Tool for Imaging and Analyzing Live Blood Characteristics with Darkfield Microscopy!
  • Superior Imaging of Live Blood Cells using Phase Contrast Microscopy!
  • Includes Brightfield Capability for Analyzing Dry Blood Layers!
  • Includes special Iris built inside the 50x and 100x oil immersion objectives for superior darkfield illumination and control.
  • Great for Health Clinics, Nutrition Consultants, Alternative Medicine Doctors, Veterinarians, and Medical Technicians.
  • Compare to Similar Units costing $9000+ with name brands!
  • Superior Ilumination provides Extra Bright Microscopic Imaging of Live Blood Cells!
  • Other microscope systems for live blood run at less than half the illumination power, resulting in darker live blood images of less quality.




Biological specimens easily viewed on glass microscope slides with this compound microscope.

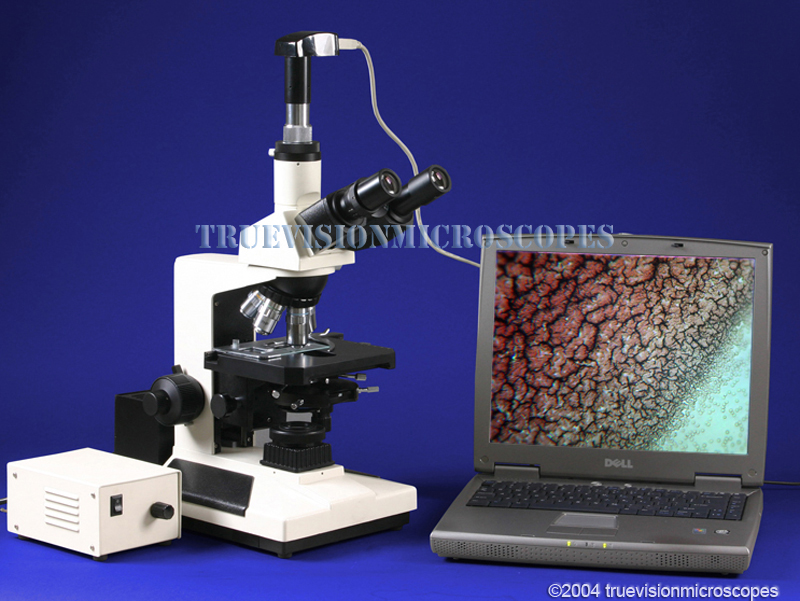

Microscope Style has been changed from what is shown.
USB computer connected camera included. Computer/Laptop not included. Shape of microscope camera may vary from what is shown.
USB computer connected camera included. Computer/Laptop not included. Shape of microscope camera may vary from what is shown.
USB computer connected camera included. Computer/Laptop not included.
Shape of microscope camera may vary from what is shown.
Photos obtained using other camera equipment with this microscope.

Live Human Blood Smear
as seen through DARKFIELD
100x Objective with Immersion Oil
1000x Total Magnification
Photo Taken Using a Digital Camera
Attached to Trinocular Port

Cheek Cells
in Phase Contrast
Taken Under 40x Phase Objective
400x Total Magnification


Human Blood Smear
Taken Under Darkfield Microscope

Human Blood Smear
Taken Under Darkfield Microscope

Camera Equipment Included
  • High Resolution 3.1 MegaPixel Digital Camera System.
  • Complete Digital Microscopy Solution Included.
  • Capture high resolution digital microscope images, 2048×1536 pixels.
  • View and record full motion live video microscope images. Frame size options for video mode: 2048X1536 (up to 11 FPS, depending on PC), 1024 X 768, 640 X 480, 512 X 384.
  • Computer connected digital microscope camera connects via USB2.0. Includes USB cable and MS Windows software.
  • Color DSP built into camera provides sharp quality color images. Image sensor size is half inch.
  • Includes measuring capability with the software.
Includes Travel Case
  • BONUS: Includes a Carrying Case with Precut Foam for safe transportation of your precision instrument.
Eyepieces and Magnification
  • Brightfield and Darkfield Magnifications Through Eyepieces: 40x, 100x, 200x, 400x, 500x, and 1000x.
  • Phase Contrast Magnifications through Eyepieces: 100x, 200x, 400x, and 1000x.
  • Eyepiece Set Included: Wide Field 10x.
  • Five PLAN DIN Brightfield Objectives: 4x, 10x, 20x, 40x, 50x (Oil), 100x (Oil Immersion). The 50x and 100x are used for darkfield analysis and brightfield. They have a special darkfield iris.
  • Four Plan DIN Phase Contrast Objectives: 10x, 20x, 40x, 100x (Oil Immersion).
  • All objectives are Plan versions for higher quality and flat field of view without distortion.
Illumination
  • Darkfield Illumination: High Power 350W Xenon variable intensity external fiber optic illumination system.
  • Brightfield and Phase Contrast Illumination: High Power 50W Halogen Variable Intensity Transmitted Light in External Housing.
  • Includes Koehler Illumination Focusable Field Diaphragm for Brightfield and Phase Contrast Microscopy.
Microscope Head Details
  • 30 Degree Inclined Trinocular Head (Easier to View than 45 Deg.) Rotatable 360 Degrees.
  • Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
  • Diopter Adjustment to Correct for Your Specific Vision Needs.
Condenser – Iris – Filters
  • Dedicated Darkfield Oil Condenser Included (N.A. 1.36 – 1.25), with centering knobs.
  • Brightfield microscopy condenser Included (1.25 N.A. Abbe Substage, Iris Diaphragm and Swing-Out Filter Holder).
  • Brightfield microscopy filters: Blue and Frosted White.
  • Phase Turret Condenser with Phase Annulus Rings. Centering Knobs for each ring. Includes Phase Telescope for Viewing Alignment of Phase Annulus Rings.
  • Rack and Pinion Condenser Movement System and Condenser Alignment Screws.
Stage Specifications
  • Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stage: 140 x 160mm..
  • Low Position Coaxial X-Y Slide/Stage Movement Knobs – Range of Movement: 75mm (X-Direction – Slide Movement) x 48mm (Y-Direction – Stage Movement).
  • Stage moves Forward/Backward, which is a better feature than a simple slide mover as most scopes have.
Focusing
  • Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
  • Coarse Adjustment Travel Range: 30mm. (Stage Movement Distance Up/Down).
  • Fine Adjustment Division: 0.002mm.
  • Coarse Focusing Tension Adjustment and Range Limit Adjustment Knobs.
Frame – Base – Size – Weight
  • Total Overall Height of Microscope: 401mm
  • Microscope Weight: 18 lbs. Weight of external fiber optic illuminator 12 Lbs. The fiber optic illuminator ships in separate box from the microscope system.
Included Items
  • Includes dust cover, immersion oil, and fuse.
  • Includes phototube (standard 23mm ID) for attaching various microphotography equipment.
  • Includes rubber eyeguards for blocking out stray ambient light from the room when doing darkfield microscopy.
Other Specifications
  • Manufactured under ISO: 9001 Standards.
  • 110 VAC Power Requirement (Contact us about 220V availability).
  • High Quality Solid Construction!
  • Precision Made Glass Optics!
  • Brand New, Never Used!
Product Warranty
  • Warranty is 5 years on all microscope equipment.
  • The microscope warranty covers problems arising from normal usage.
  • We will repair or replace your defective microscopy equipment as needed during the warranty period.
Optional Accessories
  • Optional special black and white darkfield camera with ultra light sensitivity. Single USB camera takes high resolution digital still images and does full motion live video on computer screen.
